Description
Fanless 6-Core i5 PC, high performance and features
Features
- Fanless totally silent 10th Gen 6-Core i5 Mini PC
- Media Centre features: Displayport, HDMI and high quality audio
- Dual Gigabit LAN
- Latest Wi-fi 6 802.11ax and Bluetooth 5.1
- User-accessible fast PCIe SSD
- Expansion options for DVD/Blu-ray and extra disks
- Low power consumption
- Low heat generation
Description
This 10th Generation Fanless PC has a mixture of performance and features that make it ideal for serious media users in the home or office.
This model features the ASUS H470i motherboard, which uses premium components throughout. As well as supporting up to 64GB DDR4 memory and ultra-fast NVMe SSD, it features high-fidelity, near-lossless audio with purity and stability. Other features include 2 video outputs (Displayport 1.4, HDMI 1.4b), dual Gigabit LAN, latest Wi-fi 6, Bluetooth 5.1, and 6 USB 3.2 ports including USB-C.
The product uses a copper block on the CPU that connects to the external cooling fins using heat pipes. The motherboard's chipset is also cooled with a heatpipe. This design enables the product to not need air vents and enables it to be used in dusty/dirty environments. Because there are no moving parts and no air sucked into the case the product has zero maintenance and high reliability.
The internal power board is connected to the chassis with a thermal pad to enable high reliability even when used extensively.
An additional 2 x 2.5" SSD or Hard Drives can be added which can be configured as a RAID 0/1 pair for speed or security.
An alternative front plate enables the option of an Optical Drive (DVD, Blu-ray). An additional 2.5" SSD or Hard Drive can also be added when an Optical Drive is installed.
With a volume of less than 5 litres the PC is suitable for all applications in which performance, small size, silent operation or dust protection are requirements. It is elegant enough to take pride of place in the living room yet robust enough for serious industrial use.

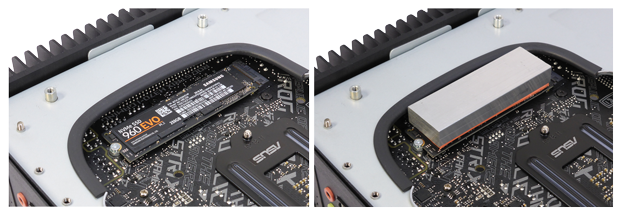

The chassis has been adapted so that it is now possible to access the ultra fast PCIe SSD that is on the underside of the motherboard. Simply remove a few screws in the PC's base plate, and once the base plate is removed the SSD can be replaced. The SSD has a thermal pad and aluminium cooling block so that even under extreme loads it does not overheat. |
Configured to your specification
We can create a solution to meet your specific requirements - just get in touch with the contact form, online chat, or give us a call.
If you choose the Windows installation option, as well as installing on the internal SSD drive, so it is ready to use out of the box, we also include a USB memory stick with the Windows installation, so you can rebuild or repair Windows if you need to.
You need to supply your own Monitor, Keyboard and Mouse. Please contact us if you need any recommendations or want custom additions bundled with your order.
Contents
✔ Ultimate ASUS H470i PC with Core i5, DDR4, M.2 PCIe NVMe SSD
✔ External 84W Power Adaptor & Power lead {based on destination country}
✔ BIOS updated to latest version
✔ Memory tested with MemTest86
✔ System soak tested with Passmark BurninTest
Specifications
Technical Details | |||
Main Board | ASUS H470-i Gaming Mini-ITX Motherboard DDR4 2666Mhz Memory {Options to 64GB} Intel 6-Core 12 thread i5-10400T 2.0-3.6Ghz Comet Lake | ||
Rear Interfaces | 1 x Intel® I219-V 1Gb Ethernet 1 x Realtek RTL8111H 1Gb Ethernet 1 x DisplayPort 1.4 1 x HDMI 1.4b 2 x USB 3.2 Gen 2 (red)Type-A + USB Type-C 4 x USB 3.2 Gen 1 1 x USB 2.0 (audio USB Type-C) 5 x Audio jack(s) 2 x Antenna for Intel® Wi-Fi 6 AX201 (802.11 a/b/g/n/ac/ax) dual band 2.4/5 Ghz | ||
Disk Drive | Samsung 970 EVO Plus M.2 PCIe NVMe SSD { Options for 2 x 2.5" SSD/HDD } | ||
Power Supply | 130W HQ Power Board inside with 84W AC/DC adapter |
SSD specifications
The NVMe M.2 SSD uses the PCIe 4x interface to bypass the limitations of the traditional SATA interface.
Samsung 250GB 970 EVO Plus M.2 NVMe SSD: 3500MB/s Read, 2300MB/s Write, 250k/550k IOPS
Processor specifications
See how the performance compares to other processors in our CPU Performance Comparison table
Processor Number | i5-10400T |
# of Cores | 6 |
# of Threads | 12 |
Clock Speed | 2.0 GHz |
Max Turbo Frequency | 3.6 GHz |
Intel® Smart Cache | 12 MB |
Processor Graphics | Intel® UHD Graphics 630 |
Graphics Base/Max Freq | 350 Mhz / 1.1 GHz |
Instruction Set | 64-bit |
Instruction Set Extensions | SSE4.1/4.2, AVX 2.0 |
Lithography | 14 nm |
Max TDP | 35 W |
Memory Specification
Corsair Vengeance LPX Memory Modules, DDR4 2666 Mhz 1.2V
Modules are always installed in pairs (2x4GB, 2x8GB, 2x16GB, 2x32GB) for maximum performance.
Motherboard Technical Specification
Fanless Heatpipe Technology
The CPU and the motherboard chipset are cooled by using advanced heat pipes attached to both sides of the case. This technology provides efficient cooling by transferring the heat to the cooling fins on the outside. As a result you get a completely silent cooling solution that can be trusted. The cooling is so effective that even the Core i5 can be used at 100% CPU load continually without any overheating problems.
The heatpipe cooling of the motherboard's chipset enables stable performance even under extreme loading. Cheaper fanless ITX cooling solutions rely on air cooling of the chipset which requires ventilation slots in those cases.
Case dimensions
Product Dimensions (WxDxH) without feet | 260(W) x 240(D) x 80(H) mm | ||
Product Dimensions (WxDxH) with feet | 260(W) x 240(D) x 88(H) mm |
Videos
View AllCloseWarranty Information
Additional Information
Processor: |
Intel Core i5 10400T with integrated UHD Graphics 630 |
Memory: |
DDR4 2666Mhz, up to 64GB |
Hard Drive: |
Samsung 970 EVO PCIe NVMe SSD { Options for 2nd & 3rd 2.5" SSD/HDD } |
Motherboard: |
ASUS Strix H470i |
Case: |
Impactics C3LH, 260 x 240 x 80/88 mm |
Chipset: |
H470 |
Graphics: |
DisplayPort 1.4, HDMI Port 1.4b |
USB 3.1 Ports: |
6 |
USB 2.0 Ports: |
0 |
Audio: |
7.1 Surround |
Firewire Ports: |
0 |
eSATA Ports: |
0 |
Networking: |
2 x Gigabit (10/100/1000 Mbs/s) LAN. 2x Antenna for Wi-Fi 802.11 a/b/g/n/ac/ax, Bluetooth 5.1 |
Optical: |
Optional DVD/Blu-ray |
Serial RS232: |
None |
