Mini-ITX Media PC Intel Core i5 3450S H77, 8GB +Choose Drives [ASUS P8H77-I]

Image 1
  • Image 1
  • Image 2
  • Image 3
  • Image 4
  • Image 5
  • Image 6
  • Image 7
Price:
£399.00 (inc VAT) £332.50 (exc VAT)
SKU:
P8H77-I-BASE
Brand:
Atlast! Solutions
Availability:
Usually ships within 48 hours
Shipping:
Calculated at checkout
Current Stock:
1
Quantity:

Product Description

Features

  • Ultra compact Mini-ITX PC smaller than a shoe box!
  • Supports hard drives up to 4TB as well as SSD for boot drive
  • Latest Ivy Bridge 3rd Generation Core i5 3450S
  • Quad Core Processor running at 2.8GHz with Turbo Boost
  • Latest H77 Chipset, with Graphical UEFI BIOS
  • 8GB Fast DDR3 Memory
  • Configure choice of SSD/Hard Drive and Optical Drive
  • Ultra quiet cool running
  • Ultra low power consumption

Description

This custom made mini-ITX PC uses all the latest components to give you a powerful PC beyond expectations.

You can configure the choice of SSD/Hard Drive, Optical Drive and Operating System.

You can select to have BOTH an SSD drive and Hard Drive. This is ideal so that Windows and your applications are installed on the ultra fast SSD, and your media files on the larger Hard Drive.

The latest Core i5-3450S processor gives performance of a high end large PC, yet it runs so cool that it can be fitted into this mini-PC, consuming very little electrical power.

You really can now have everything... computing power, very small dimensions, low power consumption and silence.

Interfaces included are: HDMI, DVI-D & VGA outputs, 2 x USB 3.0 Ports, 6 x USB 2.0 Ports, 7.1 Audio with Optical output, 1Gbit Ethernet. See below:


The PC idles using only 18-24W. When working flat out (e.g. encoding video at 100% CPU) it uses only 60W.

The PC can be used for everything from office work or general home PC, for serious media editing, or as a media centre connected to a LCD TV set using HDMI.

Windows 7 is NOT included in the price, but is available as an option.

We can make the PC to your specifications if you want something different from this listing, so please email or chat online live with us if you have any questions.

Contents

  • Mini-ITX PC with Core i5-3450S, 2.8Ghz
  • Processor is Quad core, 2.8 Ghz with Turbo Boost to 3.5 GHz
  • ASUS P8H77-I Mini-ITX Motherboard
  • 8GB DDR3 Memory
  • SSD/Hard Drive and Optical Drive Options
  • PCI-Case Noah enclosure with 90W Power board
  • External 80W Power Adaptor & UK/Euro Power lead
  • Keyboard in photos not included (available as option)

Specifications

Technical Details
Main Board

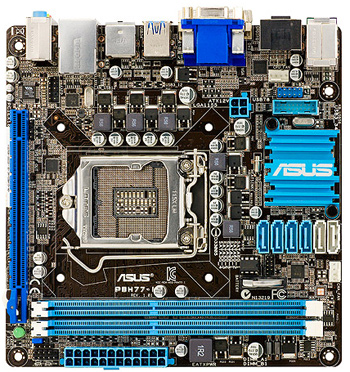

ASUS P8H77-I Mini-ITX Motherboard

8GB (2 x 4GB) DDR3 Memory

Intel Core i5-3450S 2.8Ghz  IvyBridge

Rear Interfaces

Gigabit (10/100/1000 Mbs/s) LAN subsystem using the Realtek® 8111F Gigabit Ethernet Controller

VIA 8-Channel High Definition Audio

2 x USB 3.0 Ports

6 x USB 2.0 Ports

1 x DVI-D (digital) Port

1 x VGA Graphics Port

1 x HDMI Port

1 x PS/2 Keyboard Port
Front Interfaces

1 x Headphone (audio out)

1 x Microphone (audio in)

2 x USB 2.0 Ports
Disk Drive

Choose from options
DVD Drive Choose from options
Power Supply 90W DC-DC board, 80W AC/DC adapter



Case and packing dimensions

Product Dimensions (WxDxH) 220x273x97mm
Packaging Dimensions (WxDxH) 255x415x160mm

Processor specifications

Processor Number
 i5-3450S
# of Cores
 4
# of Threads
 4
Clock Speed
 2.8 GHz
Max Turbo Frequency
 3.5 GHz
Intel® Smart Cache
 6 MB
Bus/Core Ratio
 28
DMI
 5 GT/s
Instruction Set
 64-bit
Instruction Set Extensions
 SSE4.1/4.2, AVX
Lithography
 22 nm
Max TDP
 65 W

Motherboard detailed specifications


CPU Intel® Socket 1155 for 3rd/2nd Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 22 nm CPU
Supports Intel® 32 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to www.asus.com for CPU support list
Chipset Intel® H77
Memory 2 x DIMM, Max. 16GB, DDR3 2200(O.C.)/2133(O.C.)/2000(O.C.)/1866(O.C.)/1800(O.C.)/1600/1333 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
* 1600MHz and higher frequency is supported by Intel® 3rd generation processors.
* Refer to www.asus.com or user manual for the Memory QVL (Qualified Vendors Lists).
* Due to the CPU behavior, DDR3 2133/1866MHz memory module will run at DDR3 2000/1800MHz frequency as default.
Graphic Integrated Graphics Processor
Multi-VGA output support : HDMI/DVI/RGB ports
- Supports HDMI with max. resolution 1920 x 1200 @ 60 Hz
- Supports DVI with max. resolution 1920 x 1200 @ 60 Hz
- Supports RGB with max. resolution 2048 x 1536 @ 75 Hz
Multi-GPU Support Supports LucidLogix® Virtu™ MVP Technology *1
Expansion Slots 1 x PCIe 3.0/2.0 x16
Storage Intel® H77 chipset :
2 x SATA 6Gb/s port(s), gray
4 x SATA 3Gb/s port(s), blue
Support Raid 0, 1, 5, 10
LAN Realtek® 8111F, 1 x Gigabit LAN Controller(s)
Audio VIA 8-Channel High Definition Audio CODEC
- Supports : Multi-streaming, Front Panel Jack-retasking
USB Ports Intel® H77 chipset :
4 x USB 3.0 port(s) (2 at back panel, blue, 2 at mid-board)
Intel® H77 chipset :
8 x USB 2.0 port(s) (6 at back panel, black, 2 at mid-board)
Special Features GPU Boost
ASUS Exclusive Features :
- AI Suite II
- Ai Charger+
- Anti-Surge
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- USB 3.0 Boost
ASUS Quiet Thermal Solution :
- ASUS Fan Xpert
- ASUS Q-Fan 2
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS MyLogo 2
Back I/O Ports 1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.0
6 x USB 2.0
1 x Optical S/PDIF out
3 x Audio jack(s)
Internal I/O Ports 1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
2 x SATA 6Gb/s connector(s)
4 x SATA 3Gb/s connector(s)
1 x CPU Fan connector(s) (4 -pin)
1 x Chassis Fan connector(s) (4 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Internal speaker connector(s)
1 x System panel(s)
1 x Clear CMOS jumper(s)
Accessories User's manual
I/O Shield
2 x SATA 6Gb/s cable(s)
BIOS 64 Mb Flash ROM, AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI 2.0a
Manageability WOL by PME, PXE
Support Disc Drivers
ASUS Utilities
ASUS Update
Anti-virus software (OEM version)
Form Factor Mini ITX Form Factor
6.7 inch x 6.7 inch ( 17 cm x 17 cm )
Note *1: LucidLogix Virtu MVP supports Windows 7 operating systems.
*2: Due to Intel® chipset limitation, P8Z77, P8H77 and P8B75 series motherboards do not support Windows® Vista operating system.

Warranty Information

1 Year Return to Base, Parts and Labour covered.
Years 2 and 3, Labour only covered. Replacement parts charged at cost.

Other Details

Processor:
Intel Core i5 3450S with integrated HD Graphics 2500
Memory:
8GB DDR3
Hard Drive:
Choose from options
Motherboard:
Asus P8H77-I
Case:
Noah Mini-ITX, 22x27x10cm
Chipset:
H77
Graphics:
DVI-D, VGA, HDMI
USB 3.0 Ports:
2
USB 2.0 Ports:
6 Rear + 2 Front
Audio:
7.1 Surround + Optical
Firewire Ports:
None
eSATA Ports:
None
Networking :
Gigabit (10/100/1000 Mbs/s) LAN
Optical:
Slimline - Choose from options
