Features

• 3TB Hard Drive fitted inside
• Hybrid interface with USB 3.0 and Gigabit Ethernet connection
• Built-in UPnP-AV media server for digital media players

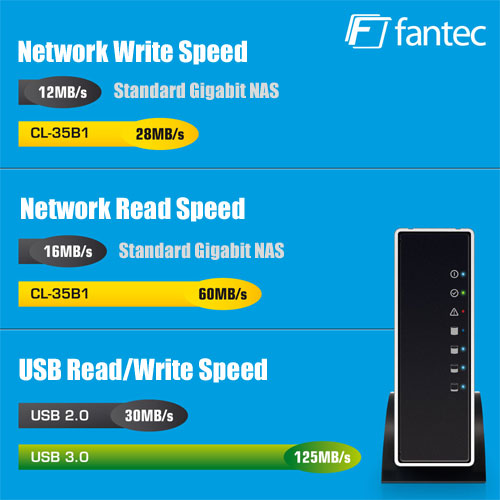

• High speed data access over Samba (read speed above 60MB/s)
• File browser for WebDAV access
• iTunes music server
• Web portal for remote login
• Free App for iOS and Android based mobile devices

Description

This hybrid multimedia server is a fully functional network drive (NAS) that allows users to login over the internet plus a USB 3.0 direct attached storage device (DAS) for super-speed file transfers. LED's on the unit's front let you know how much space is being used on your hard drive. The free iPhone, iPad and Android Apps allow for easy access on mobile devices. Comes with built-in UPnP-AV media server.

UPnP-AV Media Server

Stream content within your local network to any available UPnP-AV and DLNA compatible devices. Data can also be uploaded to the network drive and shared from multiple workstations via SMB, WebDAV or FTP connection just like on any traditional NAS system.

Supported UPnP Clients:

• Xbox 360 (JPG, MP3, WMV, XviD)
• PlayStation 3 (JPG, MP3, MPEG-1, MPEG-2, XviD)
• iTunes (MP3)
• DLNA certified UPnP clients
• Windows 7 (Windows Media Player)

Remote Access & File Browser

The FANTEC CL-35B1 offers remote web-based access for when you are on the road. With the help of WebDAV, you can manage and view your files right in the web browser or through our free mobile app, you can access the your from on a mobile device such as the iPhone or iPad. Simply login through the web portal or the mobile app and you have immediate access to your files, no matter where you are.

Hybrid Interface

The FANTEC CL-35B1 is an innovative product that features both direct attached storage and network attached storage. By directly attaching the CL-35B1 to your computer via the latest USB 3.0 technology, you can take advantage of super-speed transfer rates many times faster than USB 2.0, or, by attaching the CL-35B1 to your home network, you can easily access all your data within the home network.

Quality Features

The black aluminum case provides ideal protection and cooling of the hard disk.  Beware of cheap alternatives in plastic cases as plastic is an insulator and will cook a disk inside. The FANTEC CL-35B1 can be used 24/7 without any heat issues.  Inside the disk is assembled on shock-absorbing rubber mounts, to provide extra protection to the disk and to stop vibration through the case.

Content

• Fantec CL-35B1 NAS USB 3.0 Enclosure, fitted with
• Western Digital Caviar Green 3TB Hard Drive
• Network Cable
• USB 3.0 Cable
• Power Adaptor, UK/EU Power Leads
• Startup CD

Performance

Disk Specifications

Western Digital Caviar Green, 3TB SATA-III, 5400rpm with 64MB Cache.

Reduced power consumption – WD has reduced power consumption making it possible for our energy-conscious customers to build systems with higher capacities and the right balance of system performance, ensured reliability, and energy conservation.

Cool and quiet – Drives with WD GreenPower technology yield lower operating temperatures for increased reliability and low acoustics for ultra-quiet PCs and external drives.

IntelliPower – A fine-tuned balance of spin speed, transfer rate and caching algorithms designed to deliver both significant power savings and solid performance. Additionally, WD Caviar Green drives consume less current during startup allowing lower peak loads on systems as they are booted.

IntelliSeek – Calculates optimum seek speeds to lower power consumption, noise and vibration.

NoTouch ramp load technology – The recording head never touches the disk media ensuring significantly less wear to the recording head and media as well as better drive protection in transit.

Advanced Format (AF) – Technology being adopted by WD and other drive manufacturers as one of multiple ways to continue growing Hard Disk Drive capacities. AF is a more efficient media format that enables increased areal densities.

Enclosure Specifications

model no.:		FANTEC CL-35B1
specification:		Cloud NAS Multimediaserver Gigabit Lan + USB 3.0 + FTP Server + iTunes Server + BitTorrent + UPnP Media Server + WebDav + Portal Service + SMB Server + DynDNS Client
connectors:		Internal: 1x SATA External: 1x RJ45 LAN (10/100Base-TX / 1000Base-T) 1x USB3.0 connector
operating system:		Windows XP/ Vista/ 7, Mac und Linux
file system:		exFAT (Unlike FAT32, it is possible to store files over 4GB)
material / color:		Aluminium / black
features:		stand alone file-server User Management, BitTorrent Client, iTunes Server, FTP Server, SMB Server, UPnP Media Server, WebDav, DynDNS Client, Worldwide data access via cloud function, Gratis App for Android and available iOS, HDD sleep mode (HDD spin down) in standby mode, status LEDs, suitable for all 3.5" SATA HDD
accessories including:		Network cable power Supply Manual on CD Quick Start Guide stand rubber feet screw
country of origin:		China
dimensions (w x d x h):		39x 205x 127 mm
Power Supply:		input: 100-240V ~50-60Hz, 0,65A output: 12V/2A 24Watt
weight / piece (kg):		1,3
package (piece / carton):		10
EAN code:		4250273420210
description:		Store data and multimedia content centrally on the FANTEC CL-35B1 Cloud NAS multimedia server and provide it via gigabit ethernet to devices such as PC, Smartphone, Tablet, TV, hi-fi system, games console and media player or use worldwide availability over the Internet. The WebDAV feature enables for example the mapping as a network drive via the Internet and allows to handle the drive like a local disk. In addition, the cloud feature gives the ability to log in at the unit at any time via the Internet to manage the content. By this way the data are always available, but still reserved for private access. The UPnP Media Server enables streaming of images, videos and music to games consoles like Xbox 360, PlayStation 3 or TV devices and media players. Moreover, even iTunes and other media libraries are supported. Using a GIGABIT network provides more than double writing speed and more than 4-times reading speed than standard GIGABIT NAS devices. If you use the SUPERSPEED USB 3.0 connection it is even up to 125MB/s reading and writing speed, more than 4-times faster than USB 2.0! Due to the simple and quick installation and the ability to Plug & Play the CL-35B1 will be ready to use within seconds. Moreover, the device has additional services such as FTP Server, SMB Server & BitTorrent. The black aluminium case protects your data if you use it as a mobile storage and optimum silent cooling of the hard disk. For mobile use there are gratis apps for the iPhone, iPad and Android available.
